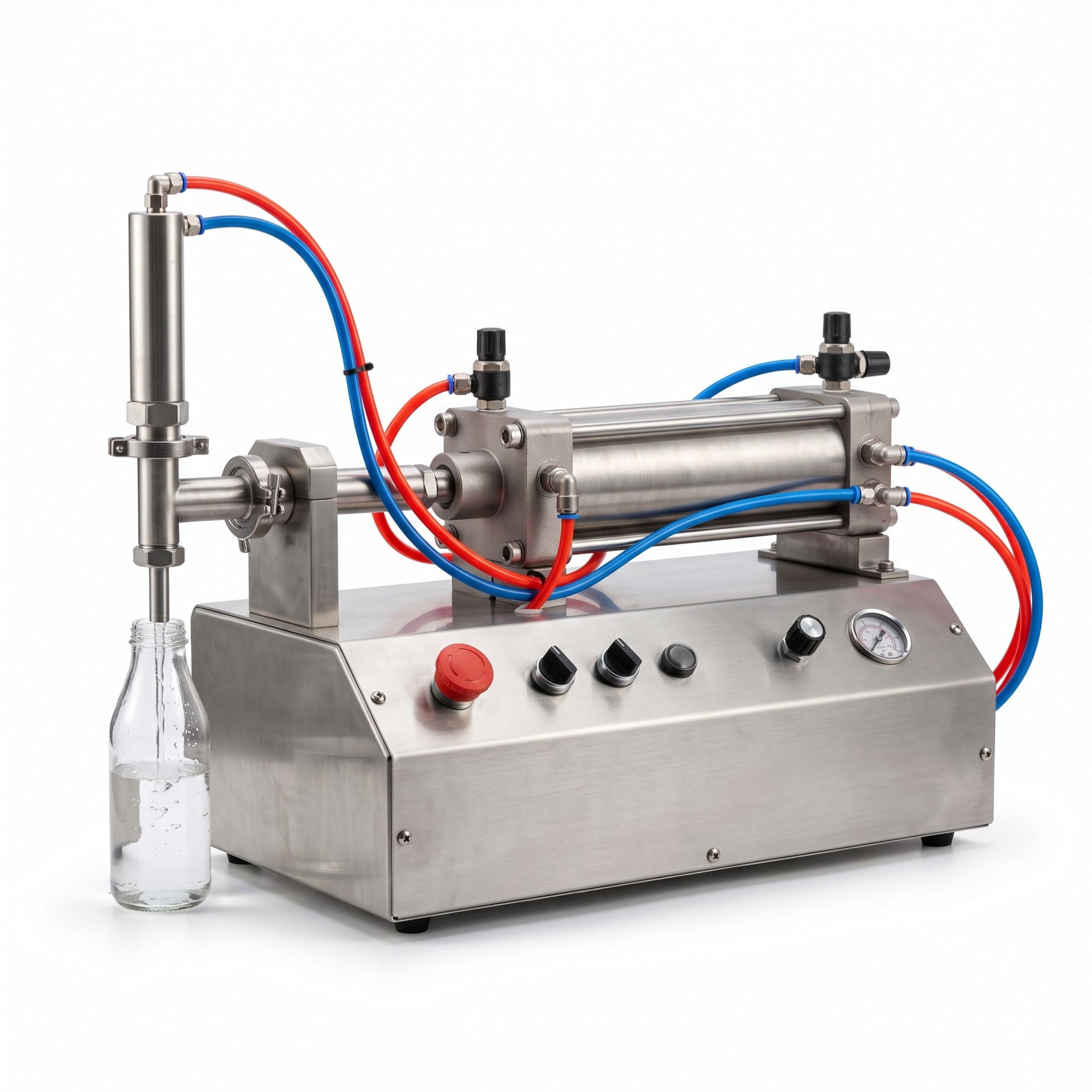

This single-head pneumatic liquid filling machine fills 500–5000 ml per shot — a compressed-air-driven, semi-automatic piston filler for free-flowing liquids such as edible oils, juices, bottled water, syrups, detergents, hand sanitizer and liquid chemicals. It is listed at Rs 58,500 ex-works.

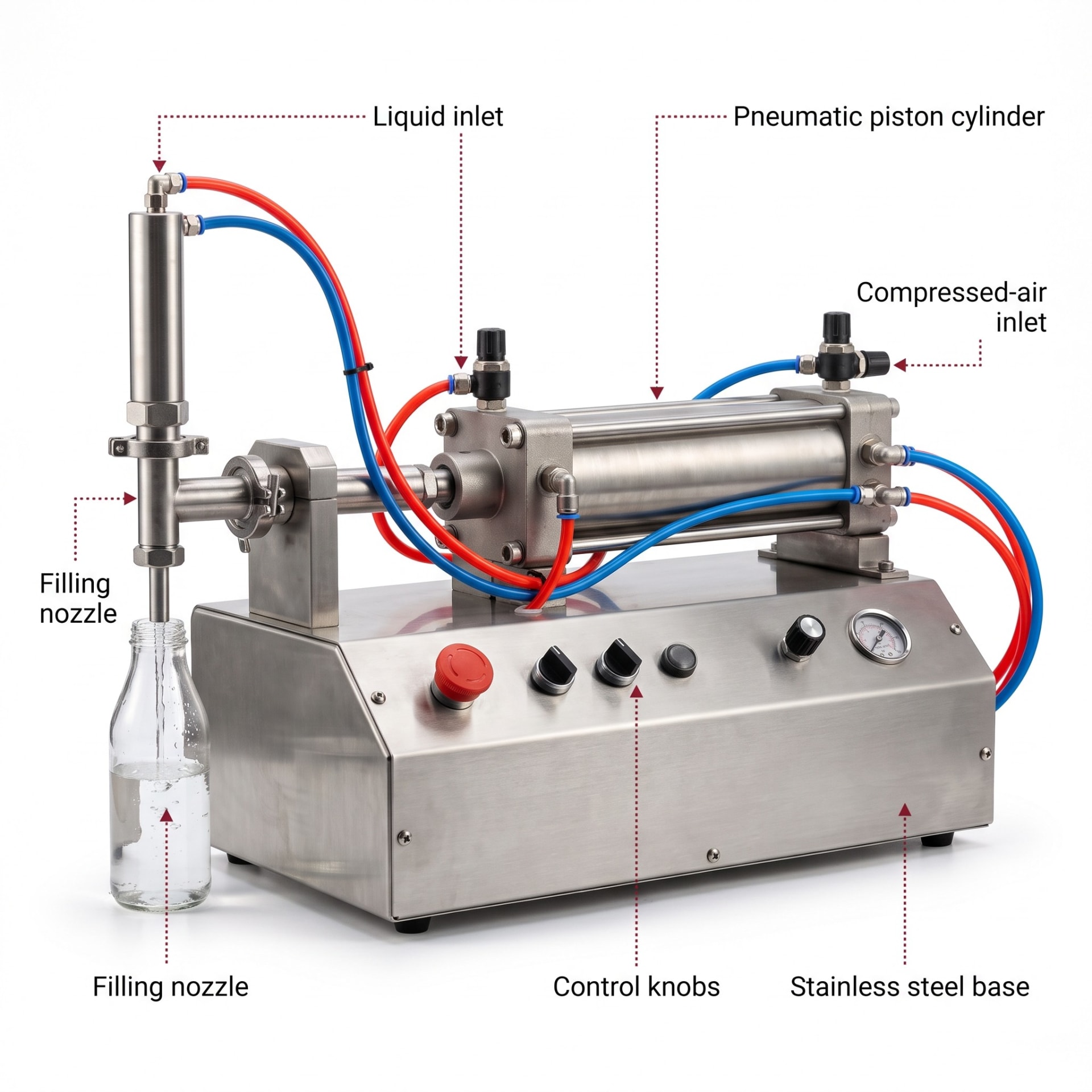

The machine is pneumatic: a compressed-air cylinder drives the product piston, and you set the fill volume on the adjustment stop. The operator places the bottle or can under the anti-drip nozzle and triggers each cycle by foot pedal or push button — no per-cycle automation, no capping or conveying, which keeps the price at the budget end of the 1–5 litre filling range. Product-contact parts on this machine class are SS304 stainless steel, and the nozzle is a shut-off type that stops drips between cycles.
Swipe or scroll horizontally to view all columns
| Machine | Heads | Fill range | Listed price (ex-works) |
|---|---|---|---|
| This machine | Single | 500–5000 ml | ₹58,500 |
| Smaller-range sibling | Single | 100–1000 ml | See pneumatic liquid filling machine (100–1000 ml) |
Key features:

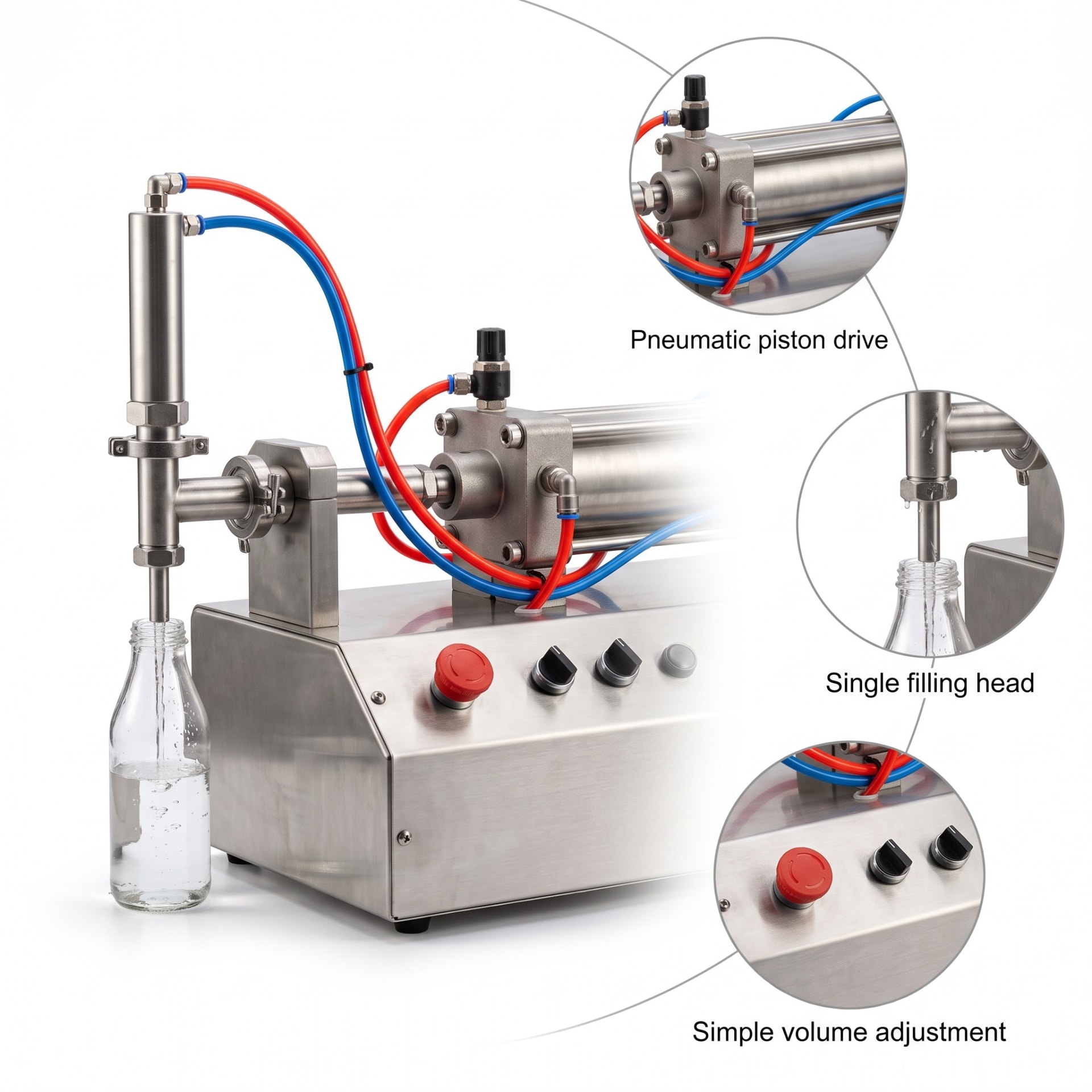

- Pneumatic piston drive: filling is driven by compressed air, not an electric motor — simple mechanics, easy to service
- Adjustable 500–5000 ml fill range: one machine covers 1-litre bottles through 5-litre jerry cans
- ±1% filling accuracy (class-typical, see notes): consistent fills that cut product giveaway
- Anti-drip shut-off nozzle: clean, controlled shut-off between cycles
- Semi-automatic operation: foot pedal or manual trigger — full operator control of each cycle
- SS304 contact parts and stainless construction on this machine class (dealer-class listings), suited to food, pharma and chemical environments
Typical applications: edible oil filling in 1–5 litre packs; juice and beverage bottling; detergent and cleaning-chemical filling; hand sanitizer and disinfectant canning; agrochemical and lubricant filling in HDPE/PET bottles, jars, jerry cans and cans.
What you need to know: you need your own air compressor supplying roughly 0.4–0.6 MPa — the dealer class runs on compressed air with only a small control circuit. Output depends on fill volume: class-typical machines do roughly 5–15 containers per minute, faster on small fills, slower on full 5-litre shots. If your product is a thick paste or cream rather than a free-flowing liquid, look at the semi-automatic paste filling machine instead. The exact hopper capacity, nozzle size, air consumption and confirmed fill accuracy for this specific unit are confirmed on pre-dispatch checking — share your liquid, container size and target output and we will confirm the numbers before you order.
We supply across India with pre-dispatch checking and responsive after-sales support.
