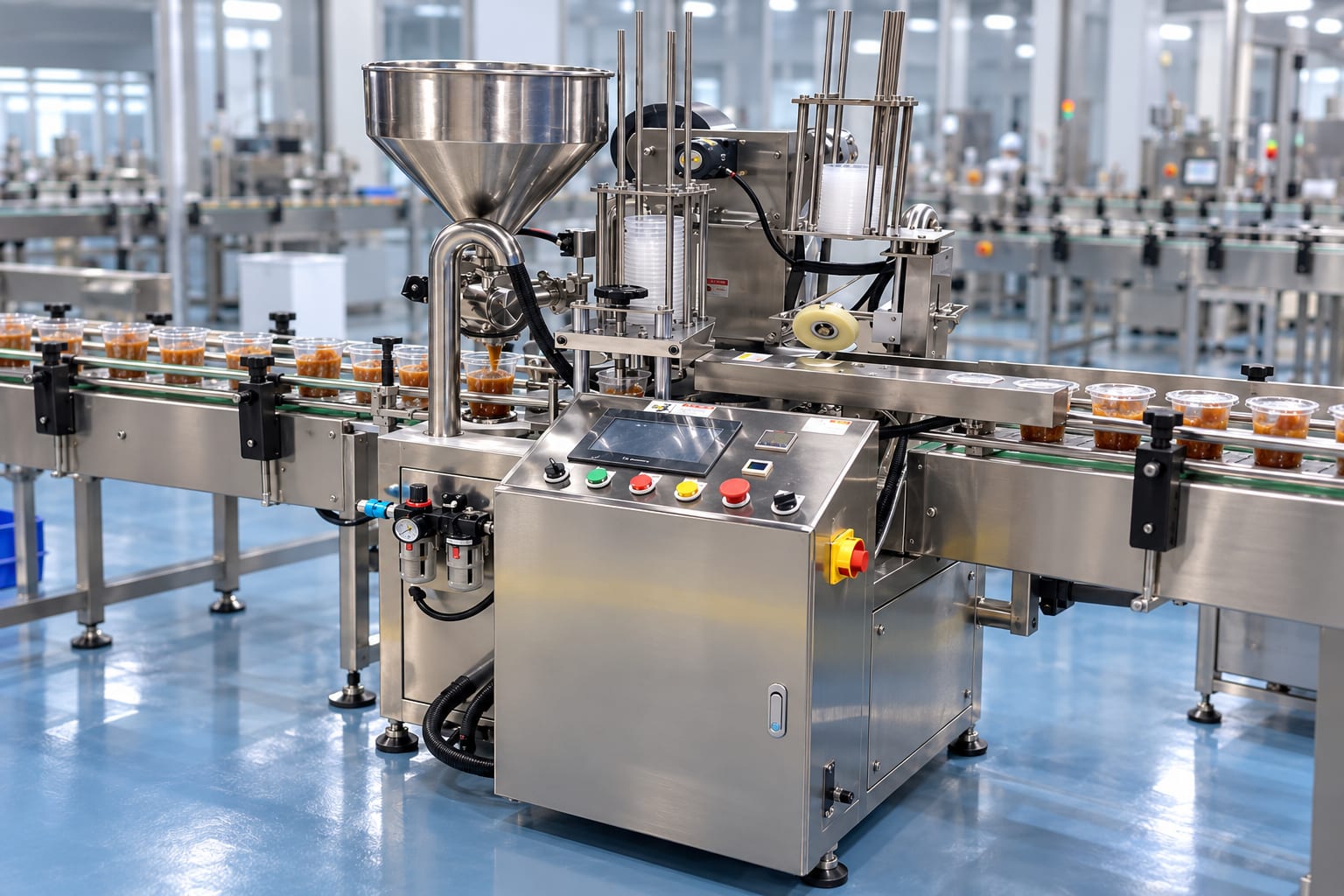

This automatic cup filling and sealing machine fills and heat-seals plastic cups in one continuous cycle, processing 1500 to 1800 cups per hour for juice, water, curd and milk, with cup washing and UV sterilization built in, and is supplied across India by New Vision Machines at Rs 4,35,000.
Note: this is a FILL + SEAL machine, not a seal-only cup sealer. It performs the full sequence — cup washing, liquid filling, heat sealing, cutting, UV sterilization and cup discharge — so it replaces both a separate filler and a standalone sealer on a juice, dairy or drinking-water packaging line.
Key features:
- Two filling heads for 1500-1800 cups per hour output
- Automatic cup washing before filling for hygienic packing
- Liquid filling from 200 ml to 350 ml per cup
- Heat sealing with 0-300 C temperature control; seals PE sheet in roll form or any sealable material
- Film cutting and automatic cup discharge after sealing
- Ultraviolet sterilization stage in the cycle
- Mechanical drive, 1 KW total power consumption, 0.5 HP motor
- Can be customized for special requirements
Typical applications: packed drinking-water cups, juice cups, curd/dahi cups, lassi and buttermilk cups, milk cups — for dairies, beverage plants and water-packing businesses.

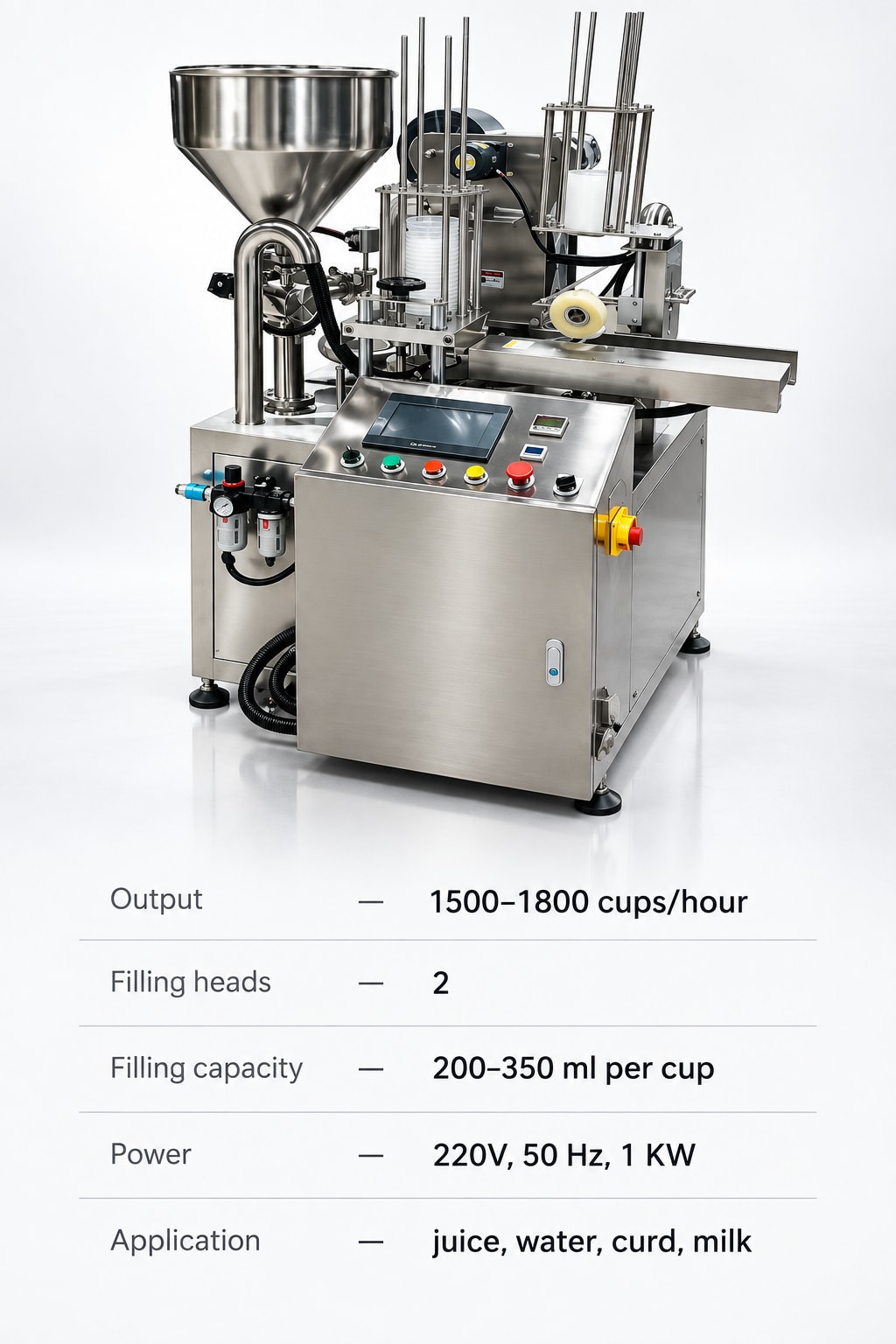

Technical specifications:
- Machine Type: Automatic, mechanical drive
- Output: 1500-1800 cups/hour
- Filling Capacity: 200 ml-350 ml per cup
- Power Supply: 220V, 50 Hz; Power Consumption: 1 KW; Motor: 0.5 HP
- Sealing Temperature: 0-300 C
- Sealable Material: PE sheet in roll form / any sealable material
- Dimensions: 1700 x 1120 x 1400 mm (approx)
- Weight: 350 kg (approx)
What is in the box: cup filling and sealing machine x1, sealing temperature controller (fitted), standard tool kit x1, user manual x1. Installation support and operator guidance are provided on delivery.
New Vision Machines supplies this cup filling and sealing machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.
