The Double-Head Pneumatic Liquid Filling Machine 100-1000 ml is a semi-automatic pneumatic filler with two nozzles that fills two containers per cycle across a 100-1000 ml volume range at 1200-2400 bottles per hour, listed by New Vision Machines at Rs 84,378 ex-works.
Key features:

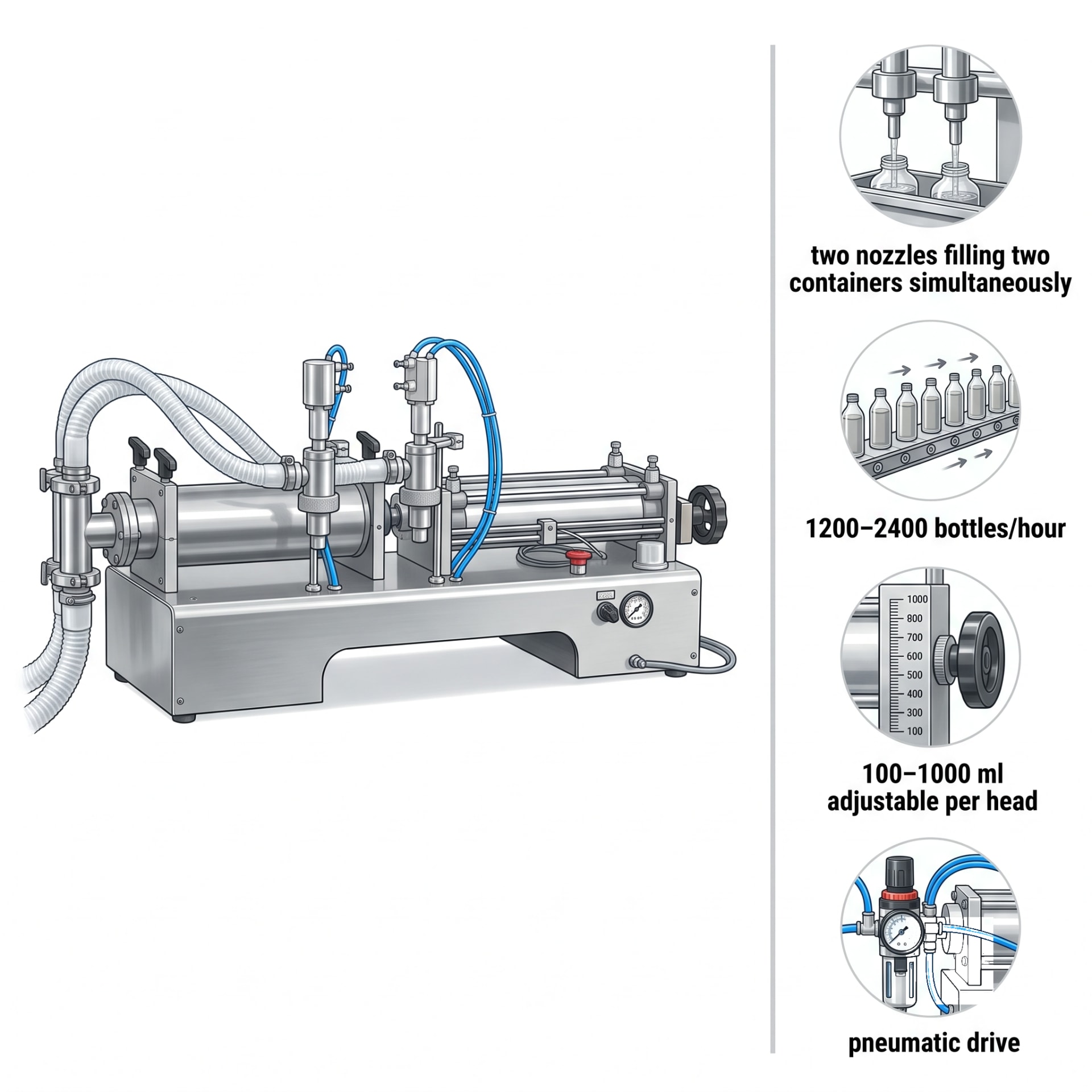

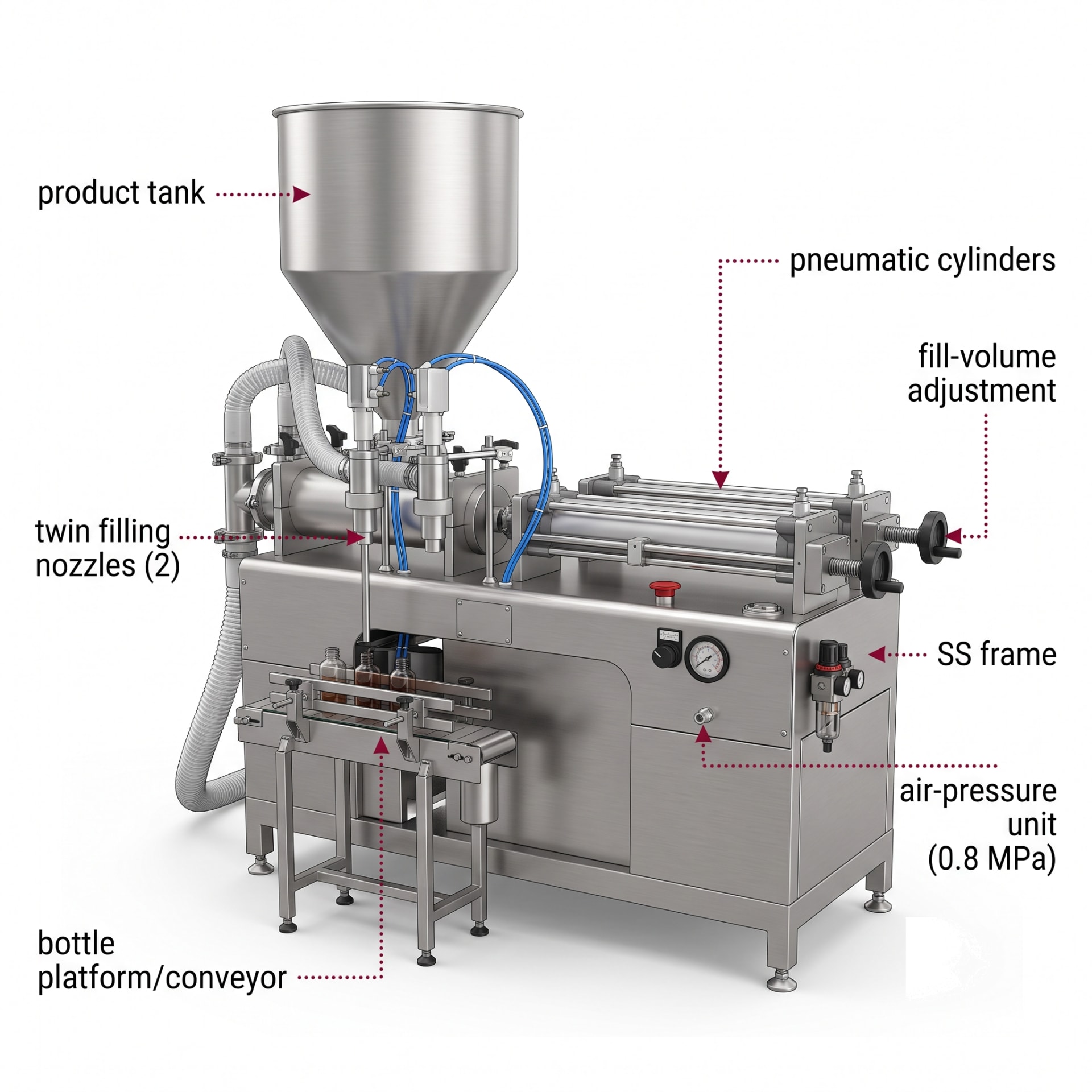

- Double-head filling: two nozzles fill two bottles, pouches or cans simultaneously — roughly double the throughput of a single-head machine for the same cycle time
- Adjustable filling volume: 100 to 1000 ml per fill with easy manual volume adjustment, suited to thin liquids like oils and juices through thicker products like syrups and lotions
- Pneumatic operation: compressed-air-driven filling delivers consistent, repeatable doses every cycle; runs on 400 L/min at 0.8 MPa air supply
- Stainless-steel and pneumatic component construction: built for daily industrial use with a 1-year warranty
- Wide packaging compatibility: fills bags, bottles, pouches, stand-up pouches and cans
Single-head vs double-head: which one do you need?
Choose by the output you need from the same 100-1000 ml pneumatic platform:
Swipe or scroll horizontally to view all columns
| Single head | Double head (this machine) | |
|---|---|---|
| Output | 600-1500 bottles/hour | 1200-2400 bottles/hour |
| Nozzles | 1 | 2 |
| Air supply | 400 L/min at 0.6 MPa | 400 L/min at 0.8 MPa |
| Listed price | Rs 49,938 | Rs 84,378 |
When to buy double head: pick the double-head version when a single operator must clear 1200+ bottles an hour, when two product lanes run side by side, or when one shift's target exceeds what the single-head machine delivers. If volumes stay under 1500 bottles/hour, the single-head variant costs less and uses slightly less air. Compare with our single-head variant: https://www.newvisionmachines.com/shop/pneumatic-liquid-filling-machine-100-1000ml-single-head

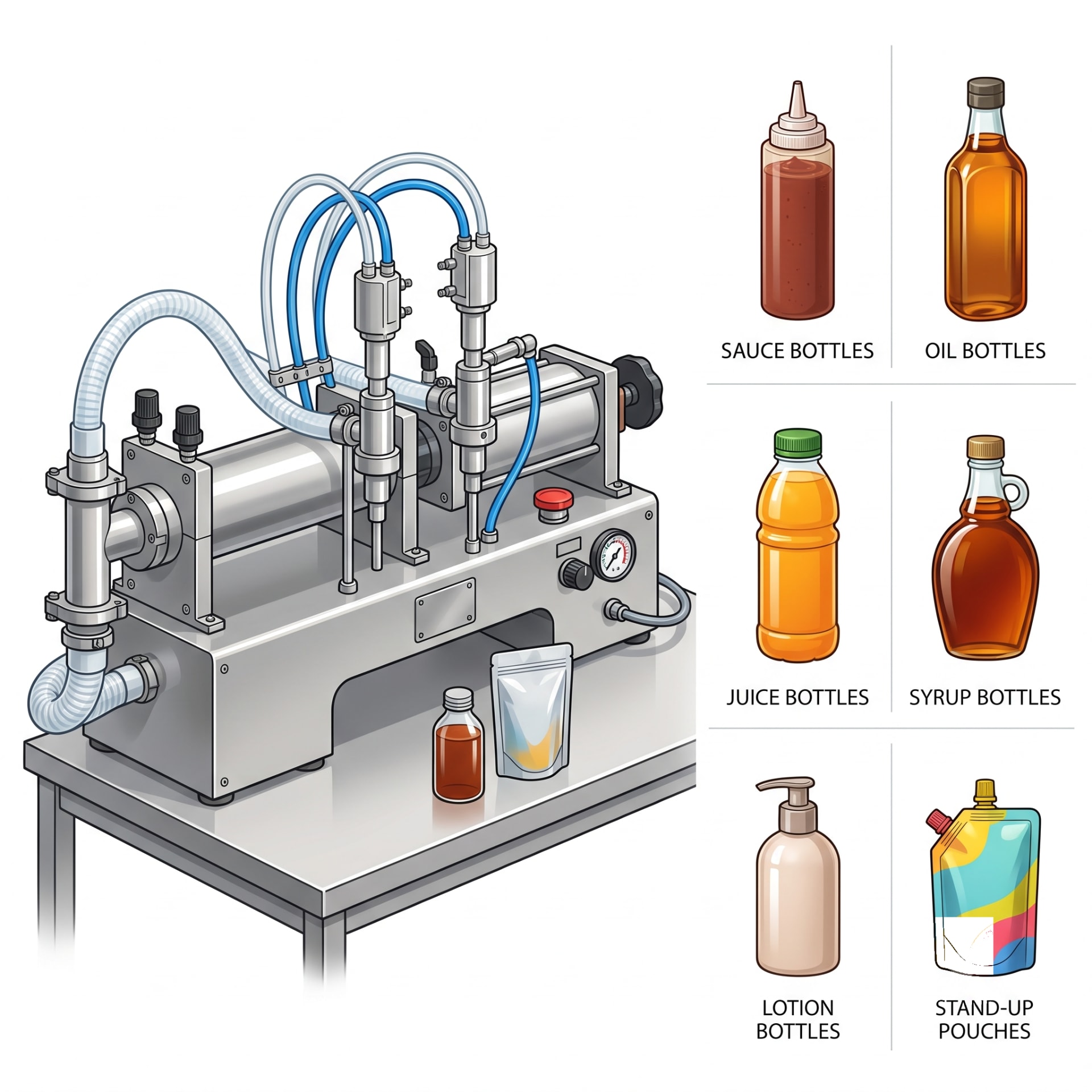

Typical applications: filling sauces, edible and cosmetic oils, juices, syrups, pharmaceutical solutions, lotions, liquid soaps and other free-flowing to medium-viscosity liquids for cosmetics, pharmaceutical, food and beverage, and chemical businesses.

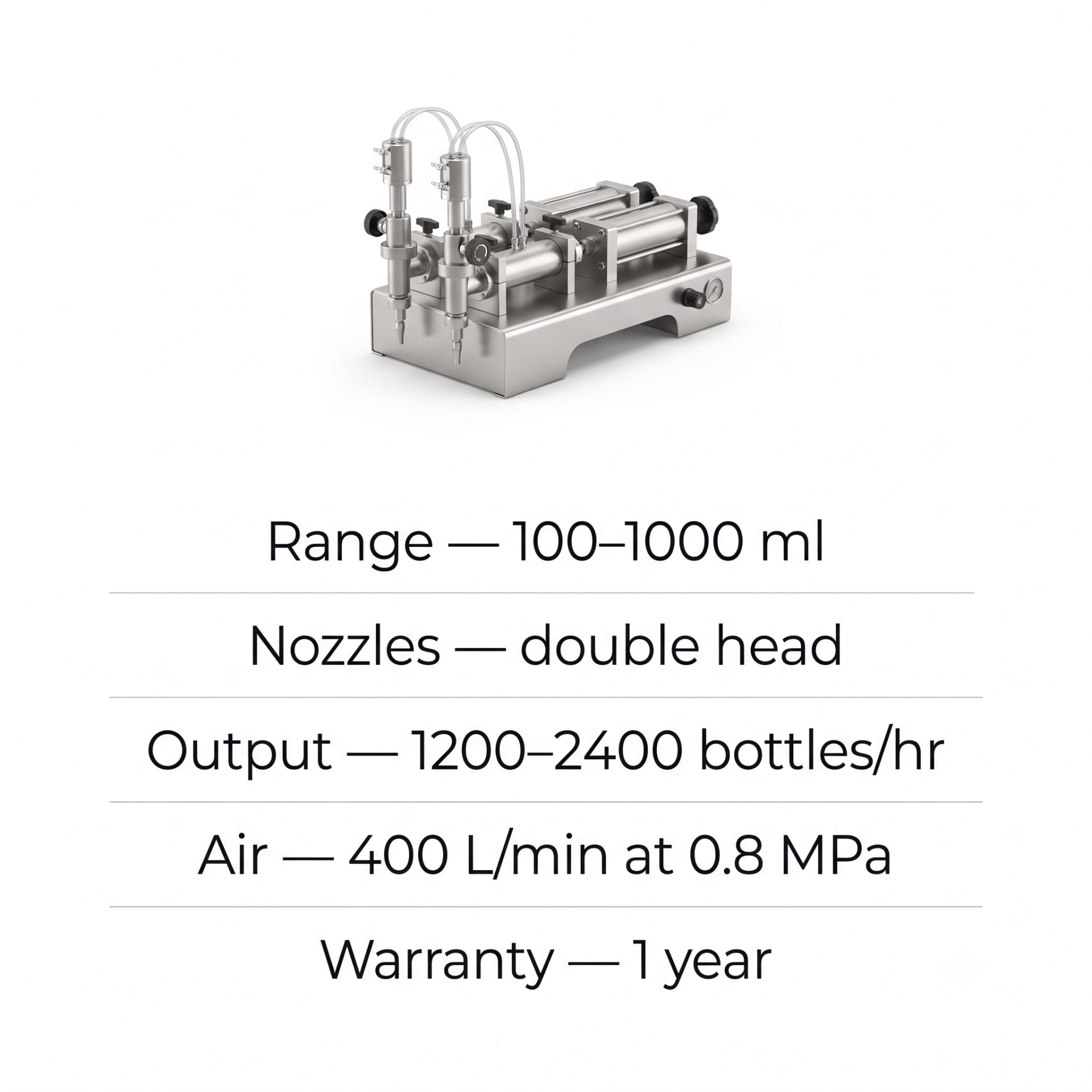

Published specifications: filling range 100-1000 ml; nozzles 2; efficiency 1200-2400 bottles/hour; air supply 400 L/min at 0.8 MPa; packaging types bags, bottles, pouch, stand-up pouch, cans; warranty 1 year.
New Vision Machines supplies this filling machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.
