Filling Machines
Automatic Water Bottle Rinsing Filling Capping Machine (RFC)
Fully automatic 3-in-1 RFC machine integrating rinsing, filling, and capping for PET bottle water packaging with production capacities from 24 to 120 bottles per minute for mineral water and packaged drinking water industries.
Starting from
₹7,50,000. ₹9,50,000. Save 21%
Excluding GST · GST Invoice Available
Genuine Product
Pan-India Delivery
Warranty Support
Installation Help
Why choose this machine?
High Efficiency
Maximize output with minimal downtime
Cost Effective
Lower per-unit production costs
Built to Last
Industrial-grade build quality
Versatile Use
Suitable for FMCG, Pharma & more
Technical Specifications
| Production Capacity | 24 BPM to 120 BPM (Bottles Per Minute) |
| Bottle Size Range | 200ml to 2000ml PET bottles |
| Filling Accuracy | ±2ml with automatic level cutoff |
| Power Consumption | 1.5 HP to 9.5 KW (depending on model) |
| Voltage | 230V to 440V, 3 Phase |
| Frequency | 50 Hz |
| Material | Stainless Steel SS304/SS316 food grade |
| Machine Type | Fully Automatic Rotary RFC System |
| Filling System | Gravity filling with progressive valves |
| Capping System | Pick and place with torque adjustable clutch |
| Air Pressure | 6 Bar |
| Control System | PLC with HMI Touch Screen |
| Bottle Neck Compatibility | 28mm Alaska neck standard |
| Automation Features | No bottle-no fill-no cap mechanism |
| Weight | 900 kg to 1500 kg (model dependent) |
| Conveyor Type | SS chain conveyor with air blow option |
About this product

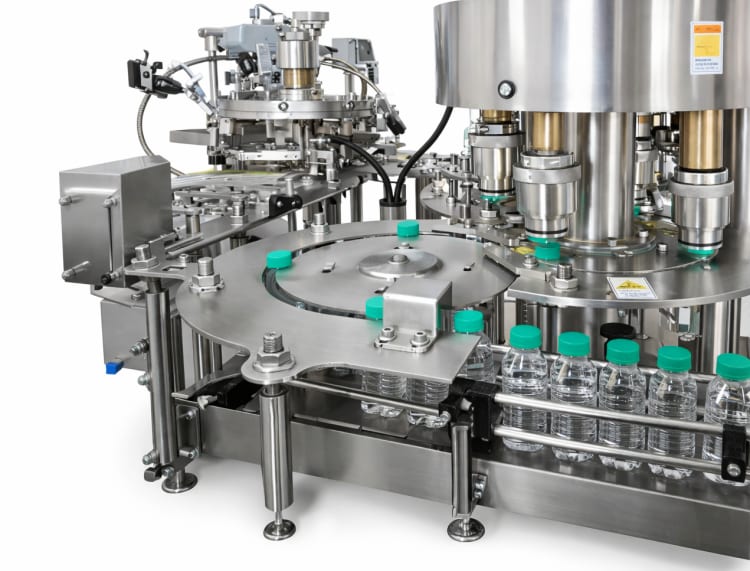

The Automatic Water Bottle Rinsing Filling Capping (RFC) Machine is a state-of-the-art fully automated packaging solution designed specifically for mineral water, packaged drinking water, and beverage bottling operations. This advanced 3-in-1 system seamlessly integrates bottle rinsing, precise gravity filling, and torque-controlled capping into a single synchronized process, ensuring maximum efficiency, hygiene, and production consistency. Built with food-grade stainless steel SS304/SS316 construction, the machine features PLC-based controls with HMI touch screen interface, progressive high-speed gravity filling valves with automatic water level cutoff, and pick-and-place capping system with adjustable torque mechanism. The intelligent no-bottle-no-fill-no-cap system prevents wastage while maintaining optimal production flow. Suitable for handling bottle sizes from 200ml to 2000ml with quick changeover capability. Ideal for bottled water manufacturers, beverage production facilities, packaged drinking water plants, and food processing industries requiring reliable, high-speed bottling solutions. The machine's rotary design with neck-holding technology ensures gentle bottle handling, contamination-free processing, and consistent filling accuracy of ±2ml. Optional features include UV sterilization, ozone water rinse for caps, air blow conveyor systems, and integrated labeling units. Available in multiple capacity configurations including 24 BPM, 30 BPM, 40 BPM, 60 BPM, 90 BPM, and 120 BPM models to match diverse production requirements from small-scale operations to large industrial bottling plants. Each model delivers proven reliability with minimal downtime and easy maintenance for continuous production operations.
Suitable Industries
FMCGPharmaFood ProcessingAgricultureChemicalsPackaging
Key highlights
- GST Invoice Available
- Free Installation Support
- Pan-India Shipping
- 1 Year Warranty
