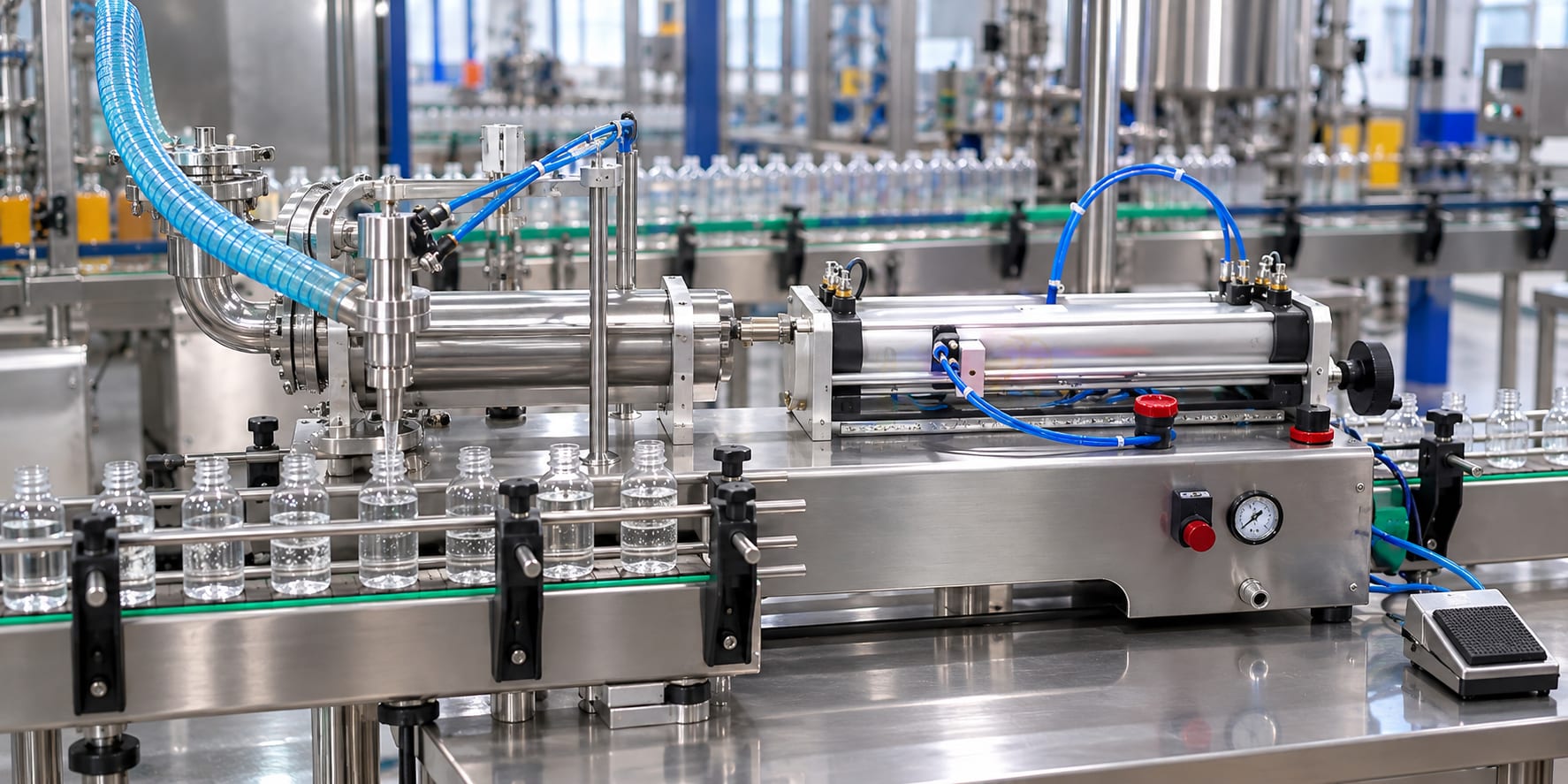

This single-head pneumatic liquid filling machine fills 10–100ml of thin liquids per cycle using a compressed-air-driven piston, delivering 600–1500 bottles per hour with an adjustable dosing cylinder, and New Vision Machines lists it at ₹38,745 ex-works for delivery across India.
Key features:
- Pneumatic drive: compressed air powers the filling piston — smooth, reliable filling with minimal maintenance and no complex motor electronics
- Adjustable filling range: 10–100ml per cycle, set on the dosing cylinder to match different container sizes
- High-precision dosing: consistent fill volume bottle to bottle, reducing product wastage and improving pack quality
- Single-head compact design: one nozzle, one piston — a space-saving unit suited to small and medium production runs
- Semi-automatic operation: air-actuated cycle fills on demand, keeping the process simple for operators
- Air supply requirement: 400 L/min at 0.6 MPa; electrical supply 220V/110V
Pneumatic vs electric vs automatic — which class do you need?
A pneumatic single-head filler like this one uses compressed air instead of an electric motor to drive the piston, so there are fewer electronics to maintain and the machine stays simple and affordable. Electric and automatic multi-head machines add motor drive, conveyors and higher throughput (thousands of bottles per hour), but they cost far more and need more floor space and setup. For small-batch filling of 10–100ml containers, a pneumatic single-head machine is the cost-effective entry point; upgrade to a multi-head automatic line only when throughput demands it.
Typical applications: sauces, oils, juices, syrups, solutions, lotions, liquid soaps and other liquid products in 10–100ml containers.

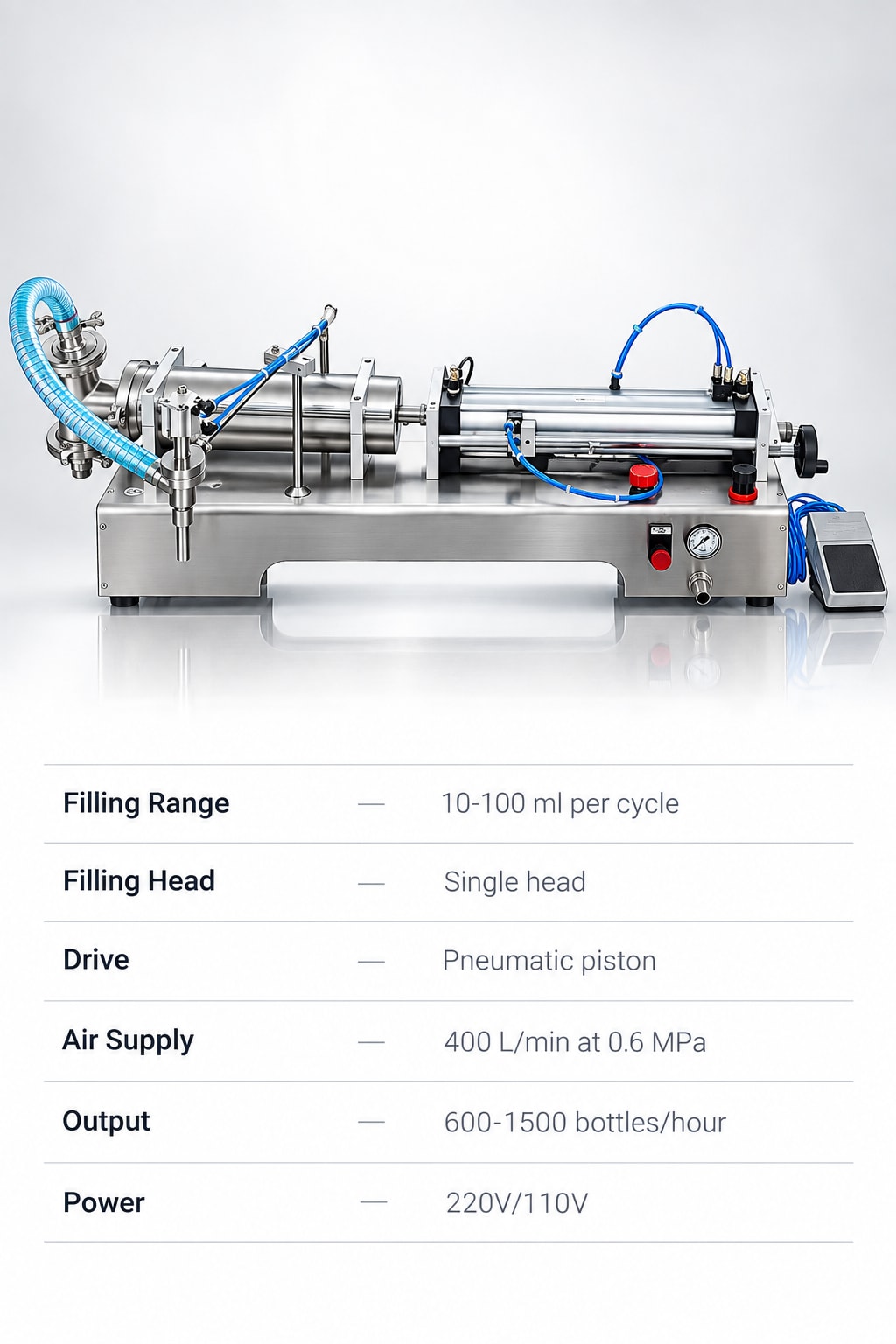

Published specifications: filling range 10–100ml (adjustable); single filling head / one nozzle; air supply 400 L/min at 0.6 MPa; output 600–1500 bottles/hour; voltage 220V/110V; 1-year warranty.
For higher throughputs, New Vision Machines also lists multi-head automatic liquid filling machines in this category — this page is the compact pneumatic single-head 10–100ml option.
New Vision Machines supplies this pneumatic liquid filling machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.
