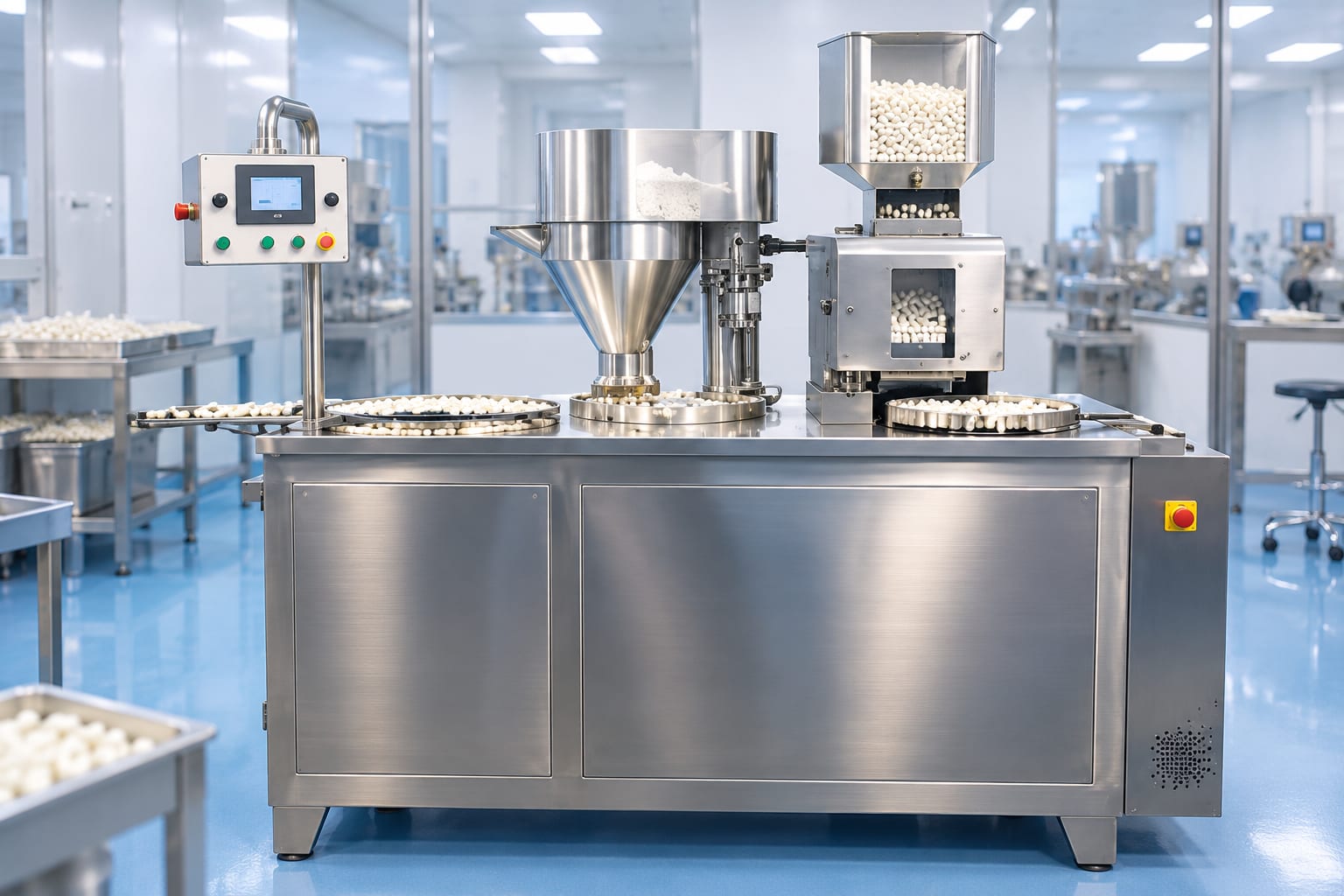

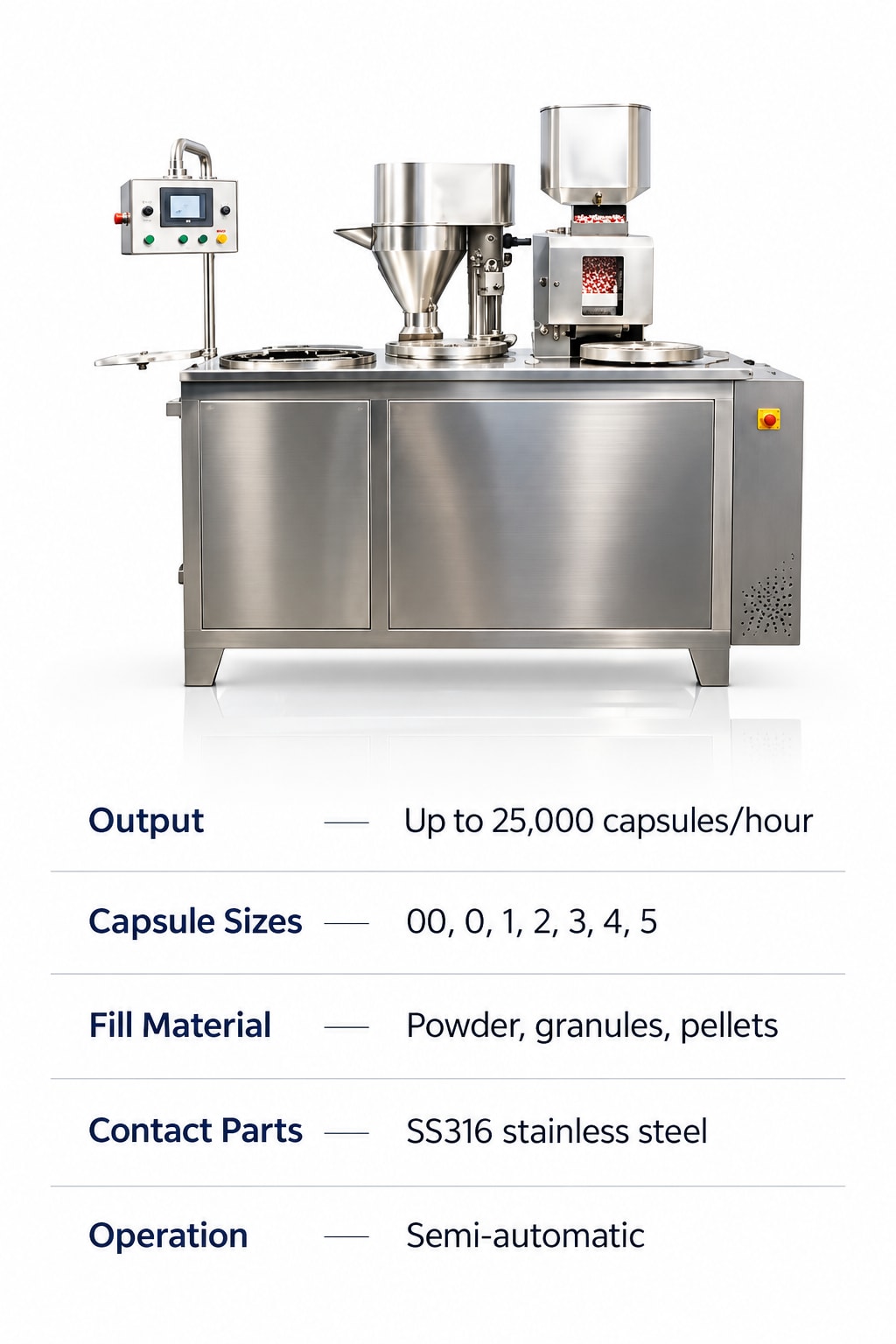

This semi automatic capsule filling machine fills powder, granules or pellets into hard-gelatin and vegetal capsules in sizes 00 to 5, with an output of up to 25,000 capsules per hour. Product contact parts are SS316 stainless steel, the loading ring is magnesium alloy, and it runs on 380–440V three-phase power. Listed at ₹5,00,000 ex-works by New Vision Machines.

Key features:

  • Output up to 25,000 capsules/hour: one or two operators feed empty capsules while mechanised dosing delivers consistent fill weights across the batch.
  • Interchangeable magnesium-alloy loading rings for capsule sizes 00, 0, 1, 2, 3, 4 and 5; change the ring when you change capsule size.
  • SS316 stainless-steel product contact parts with an Mild-steel body clad with SS304 — pharmaceutical-grade, easy-to-clean construction.
  • Dedicated drives for the capsule loader (0.25 HP), the auger dosing unit (1.5 HP) and the filling table (0.5 HP), all 380–440V three-phase, 50 Hz.
  • Built-in vacuum system (500 mm Hg at 1000 L/min) separates and seats empty capsules; pneumatic closing. Compressed air requirement: 200 L/min (8 cfm) at 100 PSI.
  • Handles powder, granules and pellets; built for pharmaceutical, nutraceutical, herbal and ayurvedic production units.

Manual vs semi-automatic vs automatic capsule filling:

  • Manual capsule filling machine: best for very small batches (a few thousand capsules a day) and startups on a tight budget; every step is done by hand, so output is low and fill weights vary.
  • Semi-automatic capsule filling machine (this page): the mid-volume workhorse — mechanised dosing, vacuum capsule separation and pneumatic closing at up to 25,000 capsules/hour with one or two operators.
  • Automatic capsule filling machine: for high-volume continuous production; faster but significantly more expensive and larger.
    If you are outgrowing manual filling but do not need a fully automatic line, a semi-automatic machine is the usual step up.

Capsule-size checklist (00 / 0 / 1):

  • Capsule sizes 00 to 5 are supported; the magnesium-alloy loading ring is interchangeable per size.
  • Larger capsules (size 00) seat fewer per ring; smaller capsules (sizes 3–5) seat more per ring — hourly output is highest with small sizes, up to 25,000 capsules/hour overall.
  • Confirm your capsule size before ordering so the correct loading-ring set is supplied.

Typical applications: pharmaceutical tablets and capsules, nutraceutical and supplement capsules, herbal and ayurvedic formulations, veterinary capsules.

What is in the box: semi-automatic capsule filling machine ×1, loading-ring set for the ordered capsule size ×1, tool kit ×1, operating manual ×1. Additional ring sets for other capsule sizes are available on request.

Pairs well with our automatic tablet/capsule counting and filling machine (https://www.newvisionmachines.com/shop/automatic-tablet-capsule-counting-and-filling-machine) — it counts filled capsules at high speed downstream of this filler.

New Vision Machines supplies this semi automatic capsule filling machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.
