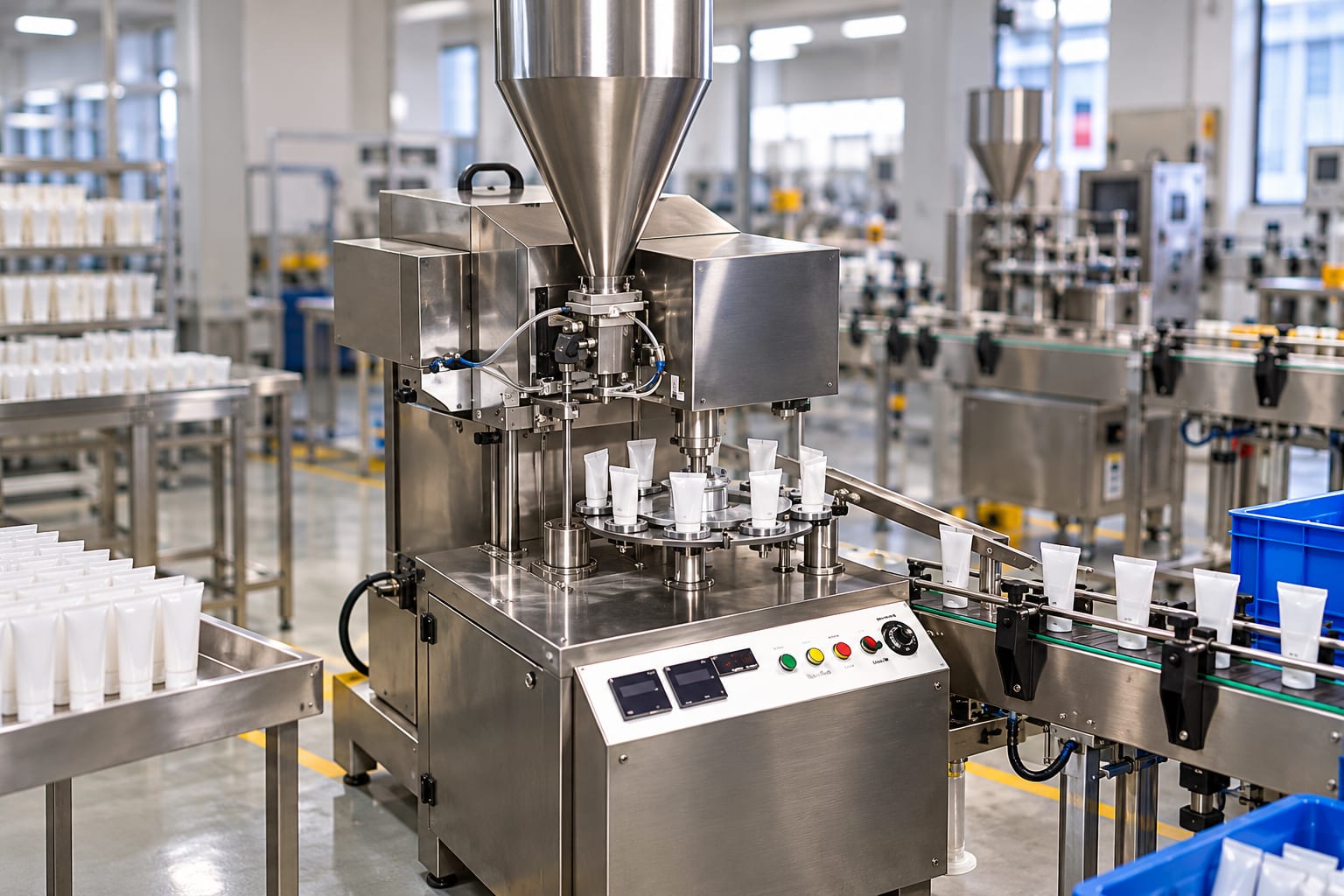

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer

NVM-OIL-DMNJ₹4,40,000

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer₹4,40,000

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer — Filling Machines manufactured by New Vision Machines Indore

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer — heavy-duty SS 304 food-grade construction & conveyor setup

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer — precision nozzles, filling heads & mechanical assembly

Filling Machines

New Vision Machines Automatic Tube Filling and Sealing Machine — 40–60 Tubes/Min Pharma and Cosmetic Tube Filler-Sealer

Automatic tube filling and sealing machine for pharma and cosmetic tubes — fills and seals 40–60 tubes per minute, 5–200 ml fill range, aluminium and plastic laminated tube changeover, SS 316 contact parts. ₹4,40,000 ex-works.

₹4,40,000₹5,49,000Save 20%

Excluding GST · GST Invoice Available

Buy Now

Call Now Ask a Question

No spam · Response in 10 min · Free consultation

Genuine Product

Pan-India Delivery

Warranty Support

Installation Help

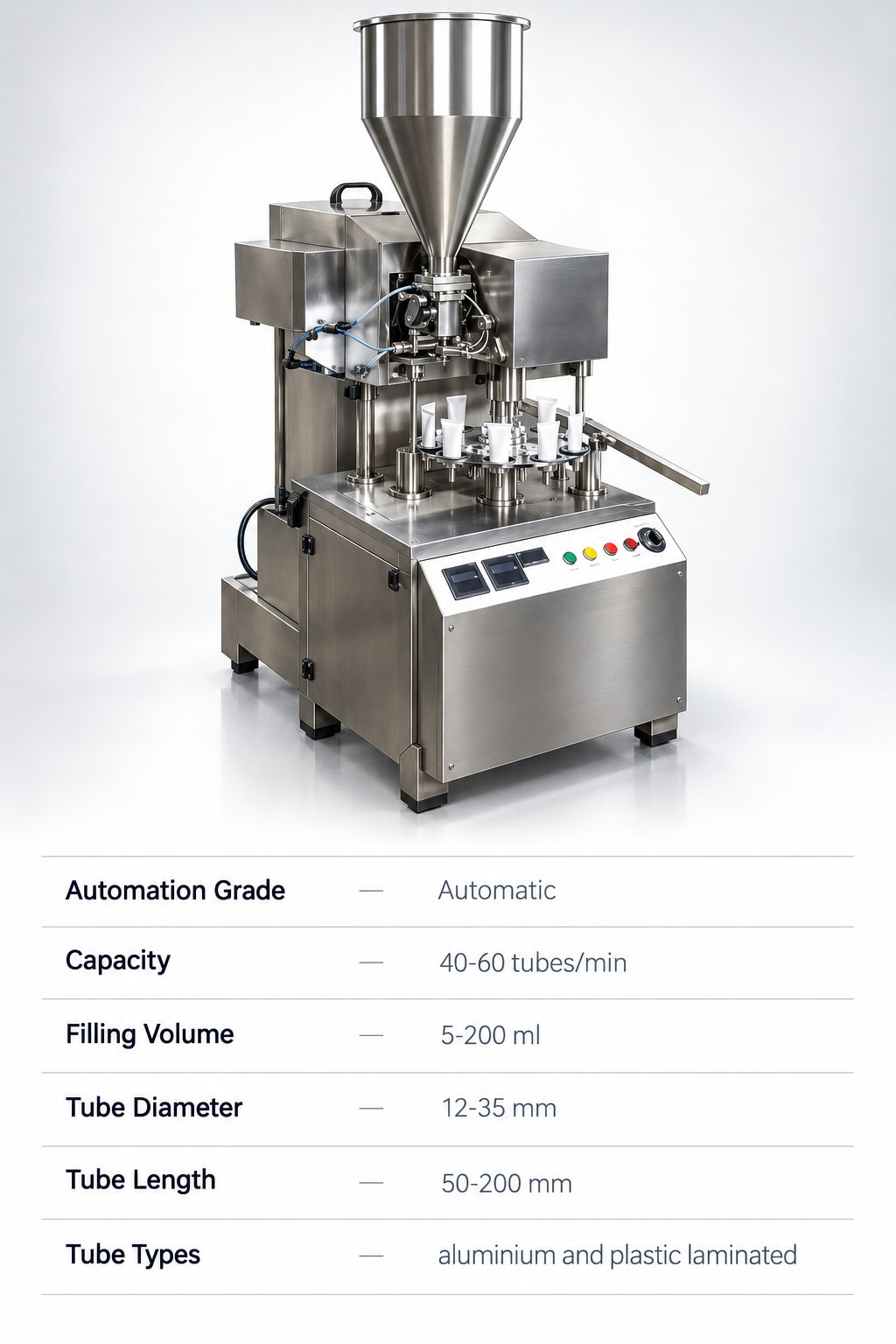

Technical Specifications

Automation Grade: Automatic
Capacity: 40 to 60 tubes per minute (depending on filling material and volume)
Filling Volume: 5 ml to 200 ml (pump options: 5–30 ml or 30–200 ml)
Tube Diameter Range: 12 mm (min) to 35 mm (max)
Tube Length Range: 50 mm (min) to 200 mm (max)
Tube Types: Aluminium tubes and plastic laminated (LAMI) tubes — sealing-device changeover
Hopper: 25–30 litre acid-proof container, electrically jacketed with thermostatic control; stirring device
Contact Parts Material: SS 316

Safety Device: No-tube-no-fill (no material discharge without tube at filling station)
Control Panel: Electrical, start / stop / inch controls; AC-drive speed control
Power: Electric drive, 2.5 kW
Machine Body: Stainless steel construction
Overall Dimensions: 1450 (W) x 1150 (D) x 1750 (H) mm
Net Weight: Approx. 255 kg; Gross Weight: Approx. 480 kg
Application: Pharma, cosmetic and personal-care tube filling and sealing

About this product

This automatic tube filling and sealing machine fills and seals 40 to 60 aluminium or plastic laminated tubes per minute with a 5–200 ml stainless-steel pump, 12–35 mm tube-diameter change parts, SS 316 product-contact parts and a no-tube-no-fill sensor, and New Vision Machines supplies it across India at ₹4,40,000 ex-works.

Key features:

Fill and seal in one automatic pass: 40–60 tubes per minute depending on filling material and volume
No-tube-no-fill device: material does not discharge from the hopper when there is no tube at the filling station
Aluminium tubes and plastic laminated (LAMI) tubes on one machine, by changing over the sealing device; tubes are sealed and coded
Electrically jacketed hopper with thermostatic control keeps the material hot for smooth flow, plus a stirring device so inactive ingredients cannot stick to the hopper wall
All product-contact parts in SS 316; 25–30 litre acid-proof container
Pump unit in stainless steel — choose one fill range per order: 5–30 ml or 30–200 ml; tube holder in aluminium or nylon sized to one tube size
Electrical control panel with start, stop and inch controls; speed control through AC drive
Electric drive, 2.5 kW power consumption

Specifications (from source data):

Tube diameter: 12 mm minimum to 35 mm maximum
Tube length: 50 mm minimum to 200 mm maximum
Overall dimensions: 1450 (W) x 1150 (D) x 1750 (H) mm; net weight approx. 255 kg, gross weight approx. 480 kg
Application: pharma, cosmetic and personal-care tubes (creams, ointments, gels in laminated or aluminium tubes)

Typical applications: pharmaceutical ointment and cream lines, cosmetic and personal-care tube filling, ayurvedic and herbal tube packing, veterinary paste tubes.

What is included: machine with electrical control panel; change-part set for one tube size (aluminium/nylon tube holder); one stainless-steel pump unit sized for one fill range (5–30 ml or 30–200 ml, chosen at order).

Unlike a seal-only ultrasonic tube sealer, this machine both fills and seals — if your line needs fill plus seal in one automatic pass, this is the machine.

New Vision Machines supplies this tube filling and sealing machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.

Product ID

NVM-OIL-DMNJ

Availability

In Stock — Ready to Ship

Warranty

1 Year Manufacturer Warranty

Shipping

Pan-India Delivery

Frequently Asked Questions

What is the price of an automatic tube filling and sealing machine in India?

It is listed at ₹4,40,000 ex-works, with a listed MRP shown alongside. The final landed cost depends on quantity, tube-size change parts and delivery location — request a quote from New Vision Machines for an exact figure.

What tube sizes and fill volumes does this machine handle?

Tube diameter from 12 mm to 35 mm, tube length from 50 mm to 200 mm, and fill volume from 5 ml to 200 ml. You choose one pump range at order — 5–30 ml or 30–200 ml — and receive a change-part set (aluminium or nylon tube holder) sized to one tube size.

Which tubes can it fill and seal?

Both aluminium tubes and plastic laminated (LAMI) tubes, by changing over the sealing device. All product-contact parts are SS 316, and the electrically jacketed hopper with thermostatic control keeps heated fills flowing smoothly.

How does an automatic tube filling and sealing machine work?

Empty tubes are loaded into holders; a no-tube-no-fill sensor blocks discharge when no tube is at the filling station. A stainless-steel pump fills each tube, then the sealing device seals and codes the tube end. An AC drive varies speed up to 40–60 tubes per minute.

How is this different from a tube sealing machine?

This machine both fills and seals tubes automatically in one pass. A seal-only ultrasonic tube sealer only seals pre-filled tubes. Choose the filling-and-sealing machine when your line needs filling plus sealing in a single automatic operation.

What power supply and setup does it need?

It is electrically driven at 2.5 kW with start, stop and inch controls on the panel. The machine stands 1450 x 1150 x 1750 mm (W x D x H) at approx. 255 kg net weight, and New Vision Machines ships it across India with pre-dispatch checking.
