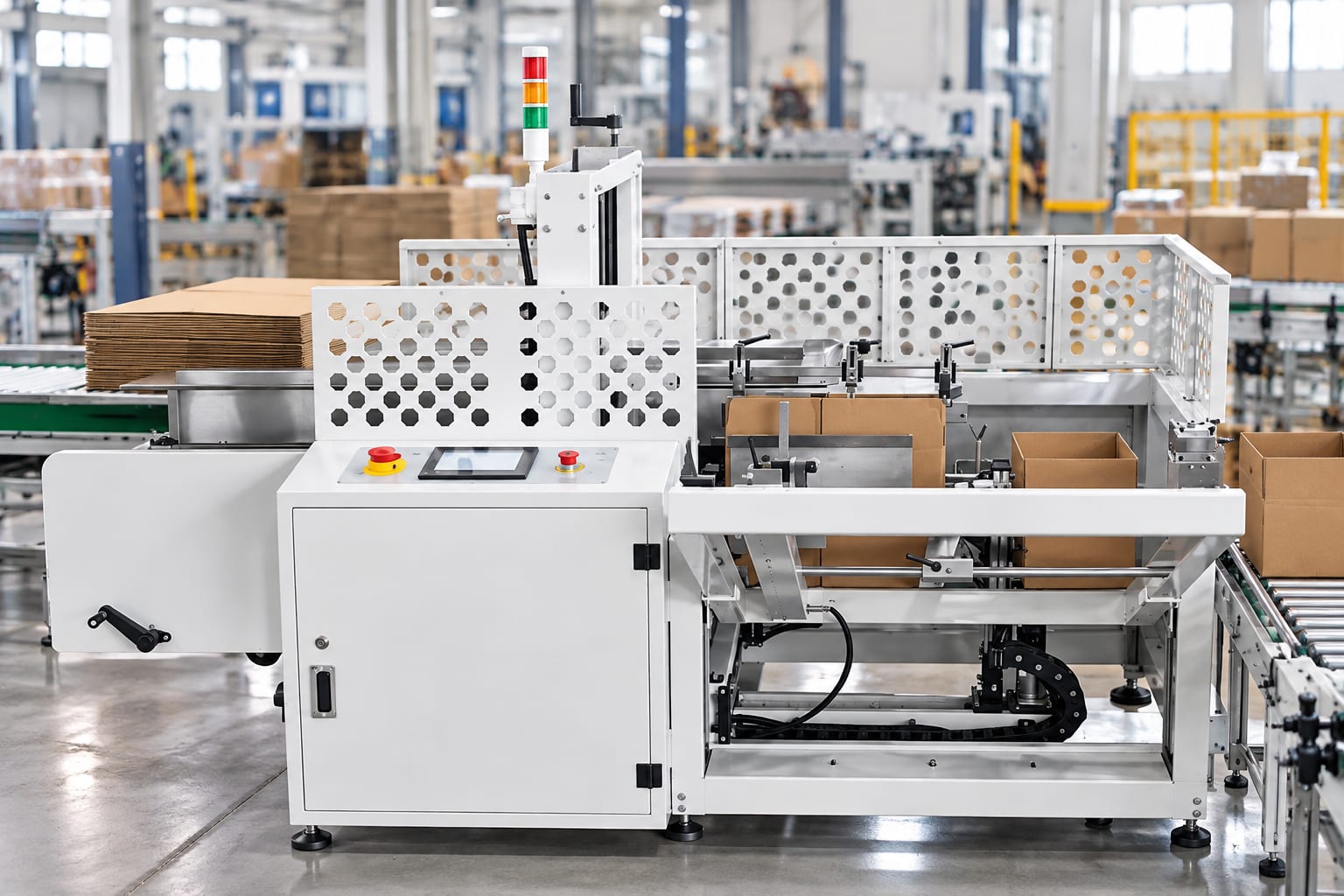

This automatic carton erector machine opens flat carton blanks, forms them into cases and seals the bottom with tape or hot glue at 8–12 cartons per minute, and is listed at ₹2,70,000 ex-works by New Vision Machines with pan-India delivery, pre-dispatch checking and after-sales support.
Key features:
- 8–12 cartons per minute throughput: automatic opening, forming, folding and bottom sealing in one continuous action — built for bulk packing in short durations
- Wide carton size range: length 250–500 mm, width 170–400 mm, height 90–550 mm — quick size changeover for different case formats
- Tape or hot-glue bottom sealing with side-drive mechanism: takes 2-inch or 3-inch sealing tape
- PLC control with touch-screen panel: easy to operate, easy to alter the program
- Vertical carton storage with carton-deficiency alarm: supplies un-opened cartons automatically and flags low stock
- Safety signal device fitted on the machine; stainless-steel contact construction; working table height 650 mm

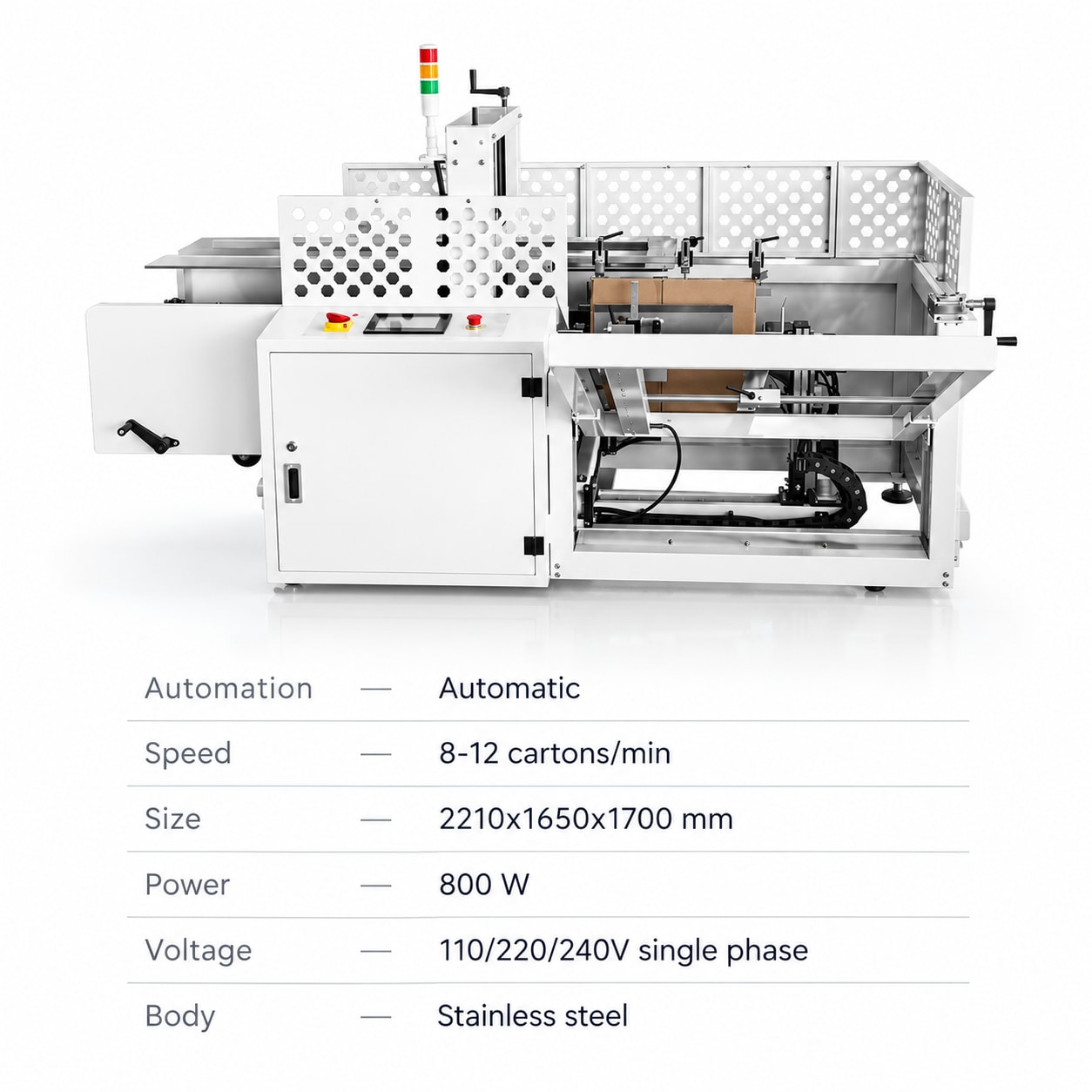

- Compact footprint: 2210 x 1650 x 1700 mm — integrates into an automatic packaging line
Typical applications: e-commerce fulfilment packing, FMCG end-of-line case packing, food and beverage secondary packaging, pharmaceutical shipper packing.
Plan it as part of a full secondary packaging line setup, and pair it with a box stretch wrapper that runs downstream of the erector to secure finished cases for dispatch.
New Vision Machines supplies this automatic carton erector machine across India with pre-dispatch checking and responsive after-sales support. Request a quote for delivery timelines and bulk pricing.
