For flexible-film coding, TTO is usually cheaper to run than CIJ because it does not use solvent or makeup. Its purchase price is also within the range of Indian entry-level coding systems.
What is the thermal transfer overprinter price in india?
The advertised TTO price range in India is ₹1,60,000–₹2,50,000, with New Vision Machines' TTO priced at ₹1,70,000.
The Indian listings reviewed were:
- Ghaziabad: ₹1,60,000
- Surat: ₹1,68,000
- Raigad: ₹1,80,000
- Chennai: ₹2,25,000
- Chennai: ₹2,50,000
- New Vision Machines: ₹1,70,000

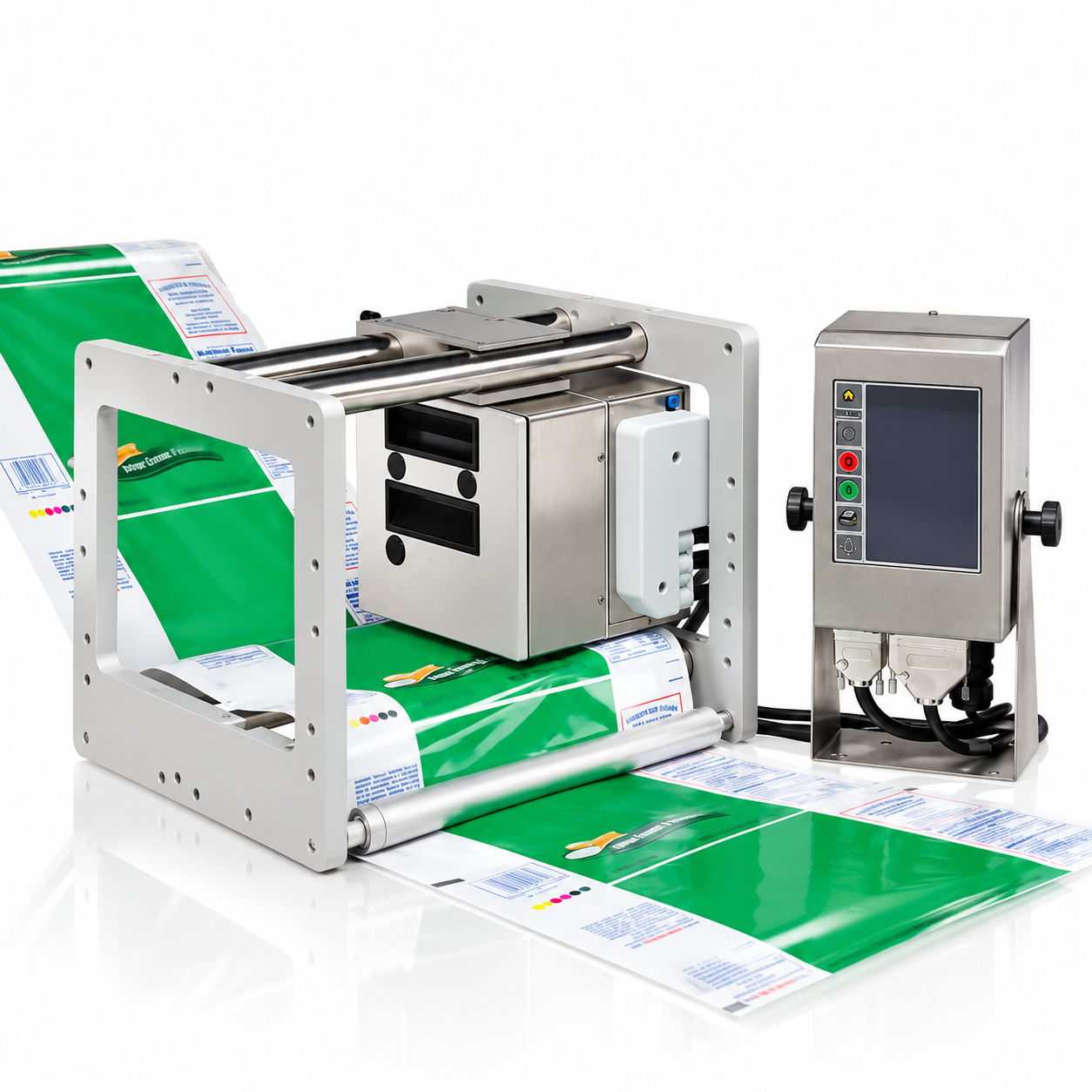

New Vision Machines' pneumatic TTO uses a 32 mm print-width printhead, delivers 300 dpi resolution, and prints at around 250 mm/sec.
For an SME running an FFS snack line, the machine price is only one part of the calculation. The film being coded, ribbon or ink consumption, maintenance and daily production volume all affect the actual cost of coding.
Which is cheaper for flexible film: TTO or CIJ?
TTO is generally the lower-running-cost option for flexible-film coding when the application is suitable for thermal transfer.
The process is simple: the TTO uses a ribbon and transfers the ink onto the film through the printhead. It is suited to pouches, laminates and FFS packaging film.
CIJ takes a different approach. It is a non-contact printing process and can make sense for applications where that capability is required. But the printer uses ink and solvent or makeup during operation. It also needs regular maintenance, including nozzle filters and service visits.
For an SME, the cost structure looks like this:
Swipe or scroll horizontally to view all columns
| Cost factor | TTO | CIJ |
|---|---|---|
| Speed | Around 250 mm/sec | Application-dependent |
| Maintenance | Ribbon and printhead-related maintenance | Nozzle filters, servicing and cleaning |
| Running cost | Thermal-transfer ribbon | Ink + solvent/makeup |
| Purchase price band INR | ₹1,60,000–₹2,50,000 advertised TTO listings | Entry-level CIJ can be cheaper upfront |
The important distinction is capital cost versus operating cost. A CIJ printer may cost less on the purchase order, but that does not mean it will remain cheaper once ink, solvent and maintenance are included over the production life of the machine.
TTO printer price in india vs CIJ entry cost
TTO printer price in india ranges from ₹1,60,000 to ₹2,50,000 across the supplied Indian listings, with New Vision Machines at ₹1,70,000.
That makes CIJ's lower entry price worth considering, but it should not be the only comparison. Once a line is producing thousands of pouches every day, consumable cost starts to matter more than a difference in the initial machine price.
A TTO uses ribbon during printing. CIJ uses ink and solvent or makeup and also brings periodic maintenance into the operating budget.
For purchasing, use:
Machine price + consumables + maintenance + expected production life
Not simply:
Machine price alone
What does 10,000-pouch coding actually cost?
For 10,000 pouches, the TTO calculation is based on the ribbon required for 10,000 impressions. For CIJ, it is based on the ink and solvent/makeup consumed during the same 10,000 prints.
There is no reliable single consumable figure to insert here without the actual ribbon specification, printed message and supplier quotation. Ribbon length, message coverage, CIJ ink consumption and solvent consumption vary by application.
Use the supplier's quoted consumption rather than an assumed market number.
Swipe or scroll horizontally to view all columns
| Running-cost method | TTO | CIJ | TIJ |
|---|---|---|---|
| Prints | 10,000 | 10,000 | 10,000 |
| Cost calculation | Ribbon used for 10,000 prints × ribbon ₹/unit | Ink used for 10,000 prints × ink ₹/unit + solvent used × solvent ₹/unit | Cartridge used for 10,000 prints × cartridge ₹/unit |
| Per-print formula | Total ribbon cost ÷ 10,000 | (Ink cost + solvent cost) ÷ 10,000 | Cartridge cost ÷ 10,000 |
| 10,000-print total | Total ribbon cost | Ink cost + solvent cost | Cartridge cost |
The calculation itself is straightforward. If the quoted TTO ribbon package costs R:
TTO cost per 10,000 prints = R
TTO cost per print = R ÷ 10,000
For CIJ, if the ink required for 10,000 prints costs I and the corresponding solvent/makeup costs S:
CIJ cost per 10,000 prints = I + S
CIJ cost per print = (I + S) ÷ 10,000
That gives the purchase team a supplier-specific comparison instead of relying on a generic consumable estimate.
### How does plant output change the calculation?
At 60 pouches per minute, an FFS line produces 3,600 pouches per hour before applying an OEE factor.
Using a 75% OEE assumption:
Daily Output = 60 × 60 × Hours × 0.75
Daily Output = 2,700 × Hours pouches/day
If the line operates for H hours per day:
Monthly Output = 2,700 × H × 30
Monthly coding expenditure can then be calculated as:
Monthly running cost = prints/day × 30 × cost/print
This is where a small difference in cost per print becomes material. A purchase manager should ask for ribbon consumption or CIJ ink/solvent consumption using the actual message, film and production speed rather than a generic machine specification.
When does TTO make more sense than CIJ?
TTO makes more sense when the line primarily codes flexible film and the plant wants to avoid recurring solvent and makeup costs.
Common applications include:
- Snack pouches
- Laminated flexible packaging
- FFS packaging film
- Batch and date coding on flexible substrates
For these applications, the right unit should be evaluated against the actual film, message size and line speed.
thermal transfer overprinter for flexible film
CIJ remains relevant when its non-contact printing method or application requirements justify its recurring operating cost.
What are the common field problems with TTO and CIJ?
Most coding defects on flexible-film lines come from the combination of printer settings, substrate, consumable and mechanical setup. The printer itself is only one part of the system.
### Faded ribbon transfer on laminated film
A faded transfer usually points to unsuitable ribbon/substrate compatibility or insufficient thermal transfer conditions for the laminate.
Fix: Check that the ribbon is suitable for the laminate. Verify printhead contact and adjust the transfer settings against the film and ribbon specification. Increasing the settings blindly is not a substitute for using the correct ribbon.
### Smudged CIJ ink on foil
Smudging occurs when the ink has not formed a sufficiently stable mark on the foil surface.
Fix: Check that the ink is suitable for the foil, inspect the print surface and allow the specified drying behaviour before the printed area contacts another surface.
### Ribbon wrinkle or tear on a 60 ppm FFS line
At 60 pouches per minute, a small ribbon-tracking problem can turn into repeated line stoppages.
Fix: Check ribbon alignment, tension and spool tracking first. Then verify printhead position relative to the film path. The ribbon should move through the printer without unnecessary resistance.
### Clogged CIJ nozzle causing downtime
A partially or completely clogged nozzle can stop the code from printing and lead to cleaning or service intervention.
Fix: Follow the printer's shutdown and cleaning procedure. Inspect the nozzle and check the relevant filter or component. Replace or service the affected part when required. Preventive maintenance is preferable to dealing with a nozzle failure during production.
Which should an SME packaging plant buy?
For an SME running flexible-film FFS packaging, TTO is the stronger cost choice when the film is suitable for thermal transfer and the plant wants to avoid recurring solvent consumption.
The purchase decision should come down to three numbers: machine price, actual consumable cost per 10,000 prints, and expected maintenance cost.
New Vision Machines' ₹1,70,000 TTO falls within the ₹1,60,000–₹2,50,000 Indian advertised TTO range. It has a 32 mm print width, 300 dpi resolution and approximately 250 mm/sec print speed.
That makes TTO worth evaluating on total cost of ownership rather than dismissing it because a CIJ system may have a lower entry-level purchase price.
New Vision Machines supplies coding and packaging machinery from Lasudia Mori, Indore, MP 452010. For TTO and flexible-film coding requirements, contact +91-9981604279 with your film type, line speed and required coding information.
