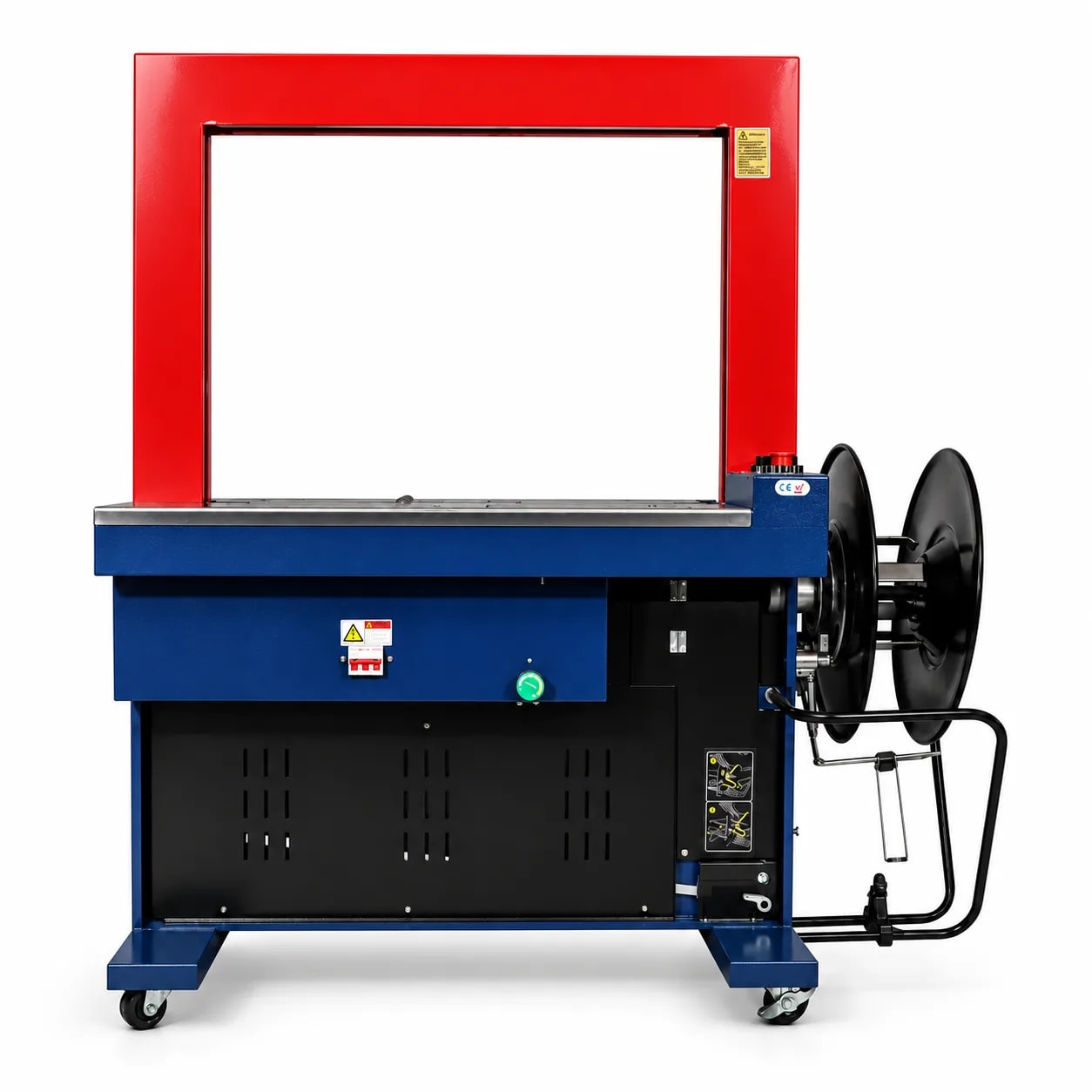

What Is a Box Strapping Machine?
A box strapping machine wraps polypropylene (PP) strap around cartons, tins or bundles, tensions it, seals it and cuts it in one motion - securing packages for transport far faster than hand strapping. 'Strapping machine' is one of the highest-demand packaging machine searches in India, and most buyers comparing prices see two very different classes of machine before they find a clear explanation. This guide fixes that.
Semi-Automatic vs Automatic Strapping Machines
| Feature | Semi-Automatic (table-top) | Fully Automatic (arch + conveyor) |
|---|---|---|
| Operation | Operator places the box and presses pedal/touch bar | Carton passes through the arch on rollers; machine fires automatically |
| Throughput | ~150-300 boxes/day | Continuous line speed, 500+ boxes/day |
| Price band in India | Rs 28,000-45,000 | Rs 1.5-2 lakh+ |
| Typical buyer | Small carton shippers, e-commerce packers, workshops | FMCG lines, 15kg oil tin packing, printing houses, warehouses |
| Sealing method | Friction/heat seal inside machine - no clips needed | Heat/friction seal inside arch - no clips needed |
A semi automatic box strapping machine is the default choice for small businesses - it needs an operator for each box but costs a fraction of an automatic line. Automatic machines earn their price only when boxes arrive continuously on a conveyor.
Box Strapping Machine Price in India
Current market bands: Rs 28,000-45,000 buys a dependable semi-automatic table-top unit; Rs 1.5-2 lakh+ buys an automatic arch machine for tin and carton lines.
Across Indian suppliers, semi-automatic machines list between Rs 28,000 and Rs 45,000 depending on strap width (12/15/19mm), body build and tension range (15-50 kg or 15-80 kg classes). Fully automatic machines - the class used on 15kg edible oil tin lines - start around Rs 1.5 lakh; New Vision Machines supplies an automatic strapping machine (15kg tin class) starting from Rs 1,95,000 with on-site installation and operator training.
Match the machine to your heaviest daily load, not your biggest dream. A Rs 35,000 semi-auto machine strapping 200 cartons a day pays back in months; an automatic arch machine on a two-box-a-day line never will.
Strap Widths, Clips & Consumables
- 12mm PP strap - light cartons up to ~10kg; lowest consumable cost.
- 15mm PP strap - the all-rounder for standard cartons and bundles.
- 19mm PP strap - heavy loads: 15kg oil tins, palletised bundles, machinery boxes.
- Strapping clips/seals - serrated seals crimped over strap ends on manual/semi-auto setups; keep one box per 10,000 straps.
- Strap rolls - buy machine-grade roll cores; hand-grade rolls jam machine feed wheels.
Worn feed wheels, tension springs and seals are the usual wear items - keep them stocked alongside your machine. New Vision Machines stocks strapping clips, rolls and machine spares for pan-India dispatch.
How a Strapping Cycle Works
Understanding the cycle helps you judge machine quality. When the strap fires: (1) the feed wheel pulls strap around the package, (2) the tension arm applies the set tension (15-50 kg on standard machines), (3) the sealer heats or friction-welds the strap overlap, (4) the cutter trims the tail, and (5) the strap relaxes to grip the load. Machines with metal gear drives and adjustable tension arms hold calibration for years; plastic-bodied units drift and slip under daily duty.
Setting tension correctly
Too little tension and cartons shift in transit; too much and the strap cuts into soft corners or buckles light cartons. Start at 60% tension on 15mm strap for 10kg cartons and step up until the strap just deforms the corner board - then lock the setting.
Applications: Cartons, 15kg Oil Tins & Bundles
15kg edible oil tins
Tin lines strap single tins or tin pairs for pallet transport. Use 19mm strap, a machine with 15-80 kg tension class, and corrosion-resistant seals. The automatic machine's table height is set so tins roll straight from the filling conveyor into the arch.
E-commerce and export cartons
Semi-automatic machines handle mixed carton sizes best because the operator controls placement. For export loads, add corner boards under the strap to prevent edge crush, and consider pairing strapping with a shrink wrap system for weatherproofing.
Printing and warehousing
Bundle strapping (paper stacks, garments, extrusions) uses 12mm strap at high strap counts - semi-auto machines with short strap cycles (about 1.5 seconds) keep up with two operators feeding from both sides.
Buying Checklist
- Count boxes per day - under 300, buy semi-automatic; above 500, automatic.
- Match strap width to load weight (12/15/19mm).
- Check tension class (15-50 kg vs 15-80 kg) against your heaviest load.
- Confirm arch size for automatic machines against your largest carton or tin bundle.
- Price consumables - strap rolls and seals are a running cost, not a one-time buy.
- See the machine strap your actual carton or tin before ordering.
- Insist on GST invoice, warranty and on-site installation - New Vision Machines includes all three.
Common Strapping Problems & Fixes
Three issues cover most service calls. Strap feeds but does not tension: the feed wheel teeth are worn or the tension arm spring has fatigued - replace both as a set. Seal splits under load: seal time is set too low for the strap thickness, or the heater/friction plate is worn - step the time up and inspect the plate. Machine jams on roll change: hand-grade rolls or the wrong core size - always buy machine-grade rolls for your strap width. Keeping a feed wheel, tension spring and seal-plate kit on the shelf turns a half-day stoppage into a five-minute swap; New Vision Machines dispatches these spares pan-India from Indore.
For units packing edible oil tins, pair the strapper with leak-free sealing upstream: a continuous band sealer closes the pouches before filling, and the strapper secures the filled tins for dispatch.
Ready to strap? Contact New Vision Machines for a strapping recommendation matched to your carton or tin line - same-day dispatch from Indore, installation across India, and full GST invoicing. Browse the complete range in our packaging machines catalogue.
